Hot Tub Wiring Installation: Expert Guide to Burial Requirements

Shocked by how many hot tub owners face safety hazards and hefty fines from improper hot tub wiring installation? You might be wondering – does hot tub wiring actually need to be buried? The answer is a big YES – and there’s no wiggle room on this one according to national electrical codes!

Here’s the scoop: The National Electrical Code (NEC) isn’t just making suggestions. They demand direct burial cables for hot tubs sit at least 18 inches underground. (Got rigid nonmetallic conduit? You can get away with 12 inches instead.) This means running electrical for your hot tub goes way beyond simply connecting a few wires – it’s about nailing those specific hot tub electrical requirements for both safety and keeping things up to code.

Setting up a brand-new hot tub? Upgrading your current bubbling paradise? Either way, you need to know exactly what those electrical wiring requirements involve. We’re talking GFCI protection, proper burial depths, and all those important safety measures that keep your relaxation zone from becoming a danger zone.

Ready to make your hot tub installation both safe and code-friendly? Let’s splash into the essential requirements and walk through the step-by-step process together!

Understanding Hot Tub Electrical Basics

Ever thought a hot tub was just about filling it with water and hopping in? Think again! Your hot tub’s electrical system is the hidden hero that keeps your relaxation time both safe and sublime. It’s not just about plugging in a cord – there’s a whole world of electrical know-how that makes those bubbles bubble and that water warm.

Let’s dive into the essential electrical requirements that turn your hot tub from a fancy bathtub into a personal paradise. After all, understanding what makes your hot tub tick isn’t just for the electricians among us – it’s knowledge every hot tub owner should have in their back pocket!

What are the hot tub wiring requirements?

Ready for some hot tub electrical talk? Most full-size hot tubs are power-hungry beasts that run on 240 volts and need their very own dedicated 50-amp circuit. This special circuit makes sure your hot tub gets all the juice it needs without making your kitchen lights flicker every time the heater kicks in! Smaller hot tubs might get by with 120 volts and a standard plug, but they usually offer fewer fancy features and heat up slower than your grandma’s old kettle.

The National Electrical Code (NEC) isn’t playing around when it comes to hot tub safety. They’ve laid down some non-negotiable rules:

• A Ground Fault Circuit Interrupter (GFCI) protected 220-240V circuit
• Copper conductors only for wiring (no exceptions!)
• A manual disconnect device (spa panel) between your home’s breaker panel and the hot tub
• All receptacles must sit at least 6 feet from your hot tub’s inside wall
• A maintenance disconnect for all ungrounded wires within eyeshot of the hot tub
• At least one convenience receptacle somewhere between 6-20 feet from the hot tub

When the pros get to work, they typically use No. 6 gage wire for standard installations. This setup includes one neutral wire, two hot wires, and one ground wire – all safely tucked inside protective conduit.

Do’s and Don’ts of Hot Tub Wiring

Do’s	Don’ts
Hire a licensed electrician	Attempt DIY electrical work
Use proper wire gage (typically #6 copper)	Use aluminum or copper-clad aluminum wire
Install GFCI protection	Share circuits with other appliances
Follow local and national codes	Use extension cords
Keep hot tub at least 10 feet from power lines	Skip professional inspection

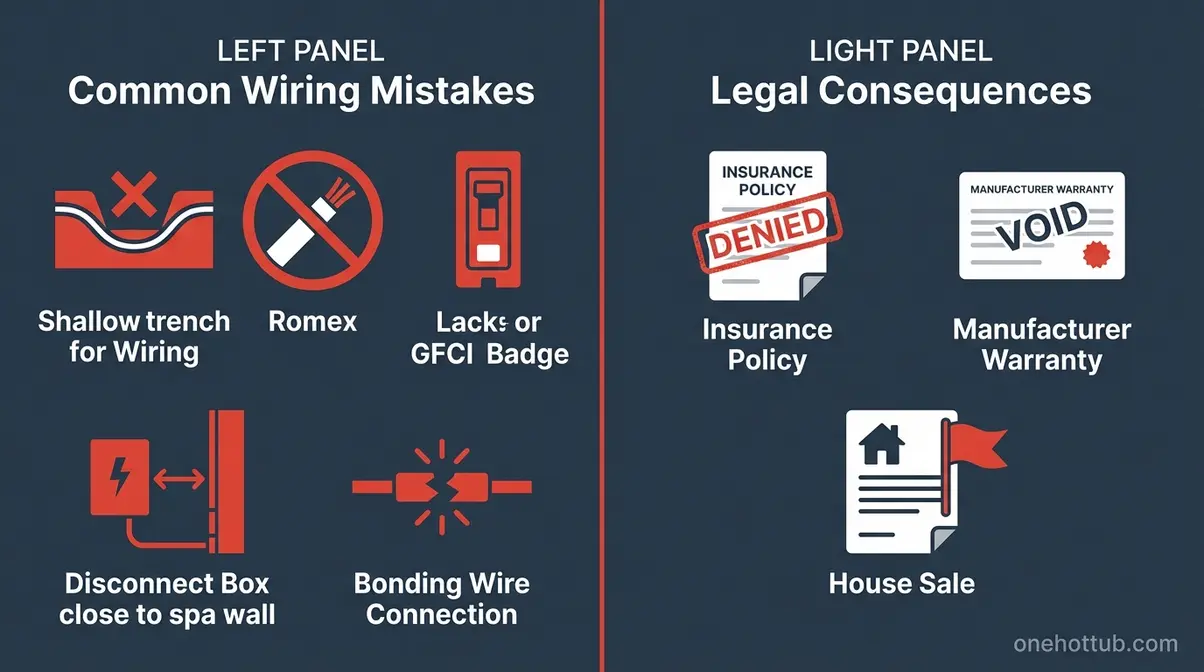

Why proper wiring matters for safety and performance

Water and electricity – friendly neighbors or mortal enemies? When it comes to hot tubs, this pairing demands serious respect! Proper wiring with GFCI protection acts like your personal safety superhero, instantly cutting power when danger lurks. And don’t forget all those metal bits within five feet of your hot tub – they need to be bonded together with copper wire to prevent any unwanted electrical surprises.

But safety’s just the beginning of this story! Did you know your hot tub’s wiring directly impacts how well it performs? The National Spa and Pool Institute reports that spas gulp down about 2,514 kWh yearly, making them the hungriest power-munchers in most homes. Interestingly, while 240V systems might seem more complicated to set up initially, they’re actually champs at heating water efficiently compared to their 120V cousins.

Your warranty could be at risk too! Many hot tub manufacturers will wave goodbye to your warranty if they spot improper electrical connections or undersized wires. A professional installation isn’t just peace of mind – it’s protection for your investment against damaged control systems and heating elements.

Think about all that power your hot tub demands! The circulation pump chugs along continuously during normal operation, while those high-speed jets you love so much are real energy guzzlers. The right electrical setup ensures everything gets the power it needs without making your home’s electrical system throw a tantrum.

Bottom line? Hot tub wiring goes miles beyond just checking boxes on a code requirement list. It’s about creating a system that’s safe, efficient, and ready to bubble away trouble-free for years to come. With the complexity and risks involved, this is definitely a job where calling in the pros isn’t just a good idea – it’s required by most local building codes!

Planning Your Hot Tub Wiring Installation

Dreaming of bubbling jets without planning the electrical setup first? Hold those horses! Proper planning isn’t just helpful—it’s absolutely essential before you run a single wire for your hot tub. Taking time to map out your approach will save you from headaches, keep everyone safe, and help you play nice with those electrical codes.

Choosing the right location for your hot tub

Finding that perfect hot tub spot is like matchmaking—you need the right balance of convenience, safety, and practicality:

• Keep your hot tub at least 5 feet away from overhead power lines, outlets, and electrical equipment (because electricity and water aren’t exactly best friends)
• Make sure there’s at least 2 feet of clearance on all sides—your future service technician will thank you!
• Think about privacy (unless you’re planning to wave at the neighbors while soaking)
• Pick a spot close to your home’s entry door for those chilly winter dashes
• Check that your chosen spot can handle the weight—a filled hot tub with people can tip the scales at 5,920 lbs!

How close is your electrical panel? Closer means simpler wiring and lighter costs. Just remember that your disconnect switch needs to be easily accessible, within eyeshot of your tub, and at least 5 feet from the inside walls.

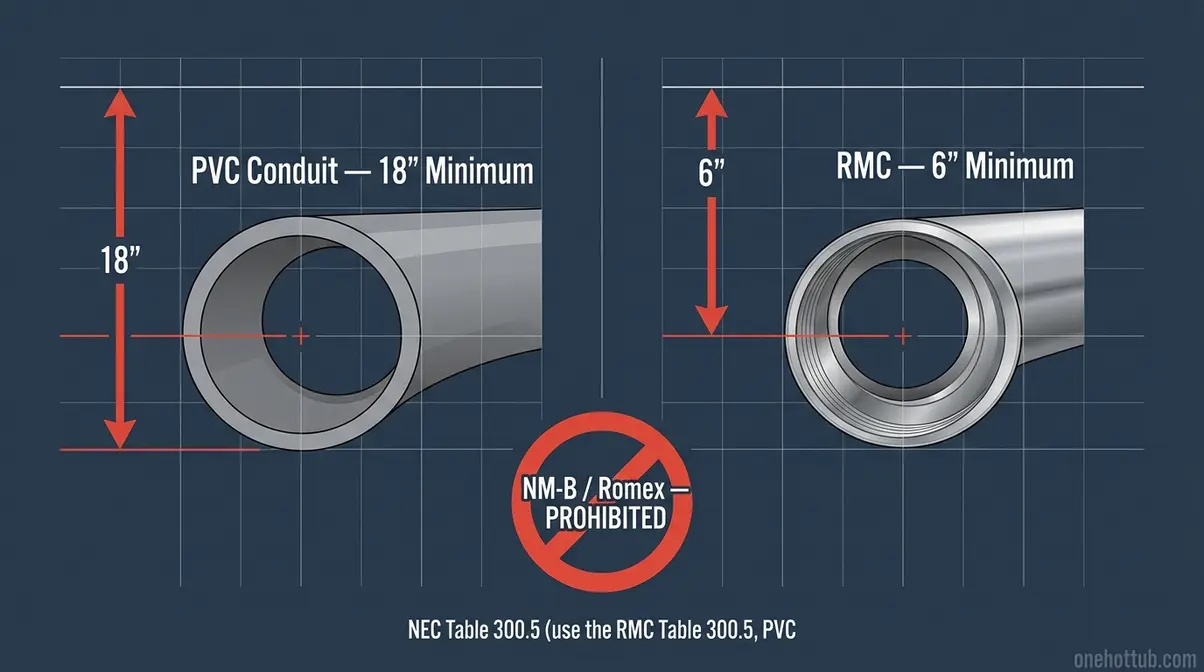

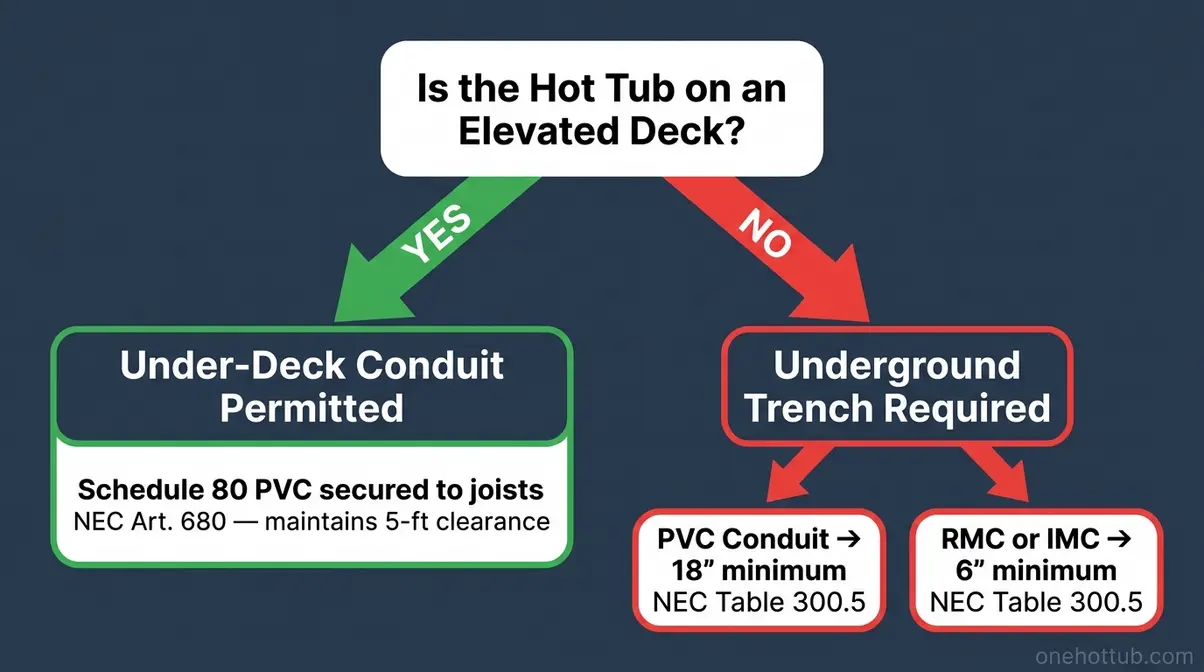

How deep does electric line need to be buried?

Does hot tub wiring need to be buried? You bet it does—and this isn’t a suggestion! The National Electrical Code (NEC) is crystal clear about how deep those lines need to go:

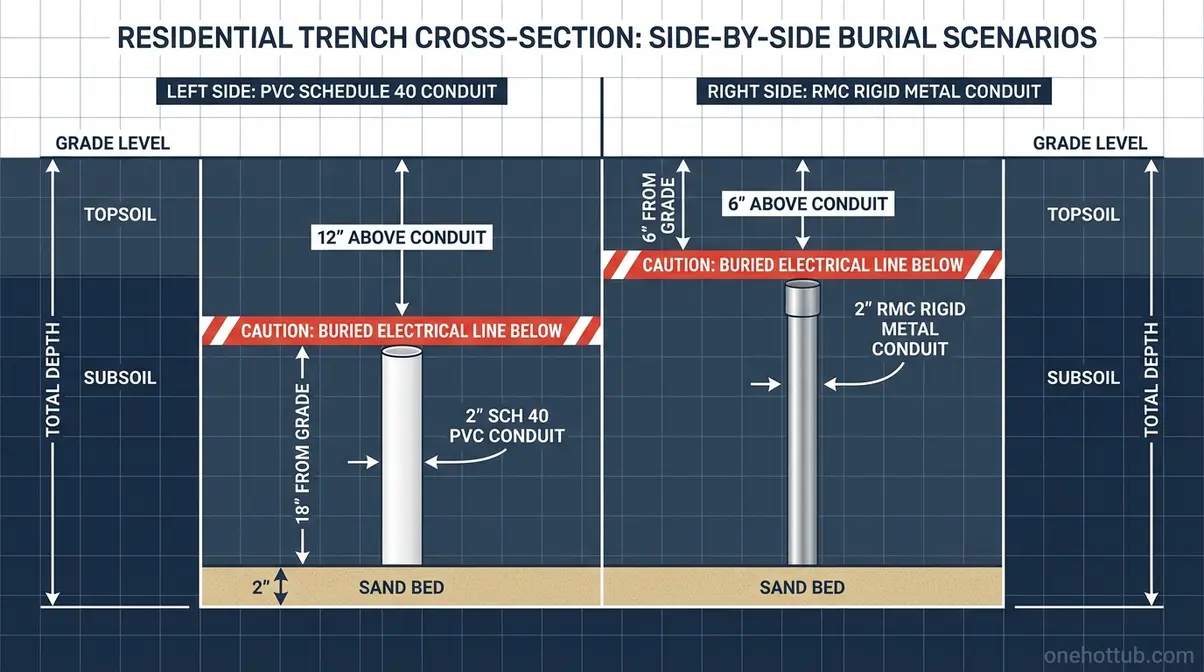

• Standard installation with PVC conduit: Dig down at least 18 inches
• Using rigid nonmetallic conduit? You can get away with 12 inches
• Got rigid metal conduit? 6 inches will do the trick

Remember, these measurements are to the top of your conduit, not the bottom of your hole. So you’ll need to dig even deeper than these numbers suggest. Live somewhere with frost heave issues? Burying those wires deeper gives you extra protection.

Before you grab that shovel, call your local utility company to mark any underground lines. Nothing ruins a hot tub installation like accidentally cutting through the neighborhood’s internet cable!

Do’s and Don’ts of hot tub wiring installation

Do’s	Don’ts
Consult with a professional electrician[121]	Attempt to complete electrical wiring yourself[121]
Ensure your hot tub has a dedicated circuit (typically 50-amp)	Install low-voltage lighting within 10 feet of the hot tub[102]
Place your hot tub in a safe location away from power lines	Install your hot tub under existing power lines[102]
Use appropriate materials (conduit, GFCI protection, etc.)	Run buried wiring under the spa
Make sure the shut-off is accessible and visible	Use undersized or aluminum wire
Obtain necessary permits before starting work	Skip professional inspection after installation[111]
Check that your home’s electrical service can handle the load	Use extension cords with your hot tub

What’s the bottom line here? Safety comes first, second, and third! Water and electricity create significant risks when they’re not properly managed, so following electrical codes isn’t just about keeping inspectors happy—it’s about keeping you and your family safe.

Before you move forward, double-check your local building codes for hot tub electrical requirements. Some areas have extra rules beyond the national code that might surprise you!

Step-by-Step Guide to Running Electrical for a Hot Tub

Let’s roll up our sleeves and get those wires running! Installing electrical service for your hot tub isn’t rocket science, but it does demand careful attention to detail and safety. Follow these steps to keep your installation code-friendly and shock-free.

Step 1: Turn off power and gather tools

First things first – shut off the main power at your home’s breaker box before touching any wires. This might seem obvious, but skipping this step could turn your hot tub project into an emergency room visit. Round up these must-have tools:

Tool	Purpose
Voltage tester	Verify power is off completely
Screwdriver set	Connect wires and mount equipment
Wire strippers	Prepare wires for connection
Hole saw kit	Create openings for conduit
Fish tape	Pull wires through conduit
Shovel & pick	Dig the trench for conduit

Step 2: Install the spa panel and GFCI breaker

Time to mount that spa panel (disconnect box) on an exterior wall or post. Think of this manual disconnect as your hot tub’s emergency brake – it must be:

• Within eyeshot of your bubbly oasis
• At least 5 feet away from splashing water
• No further than 50 feet from the tub

Pop in a 50-amp or 60-amp GFCI breaker that matches what your hot tub demands. This little safety guardian stands ready to cut power faster than you can say "zap" if it detects a ground fault.

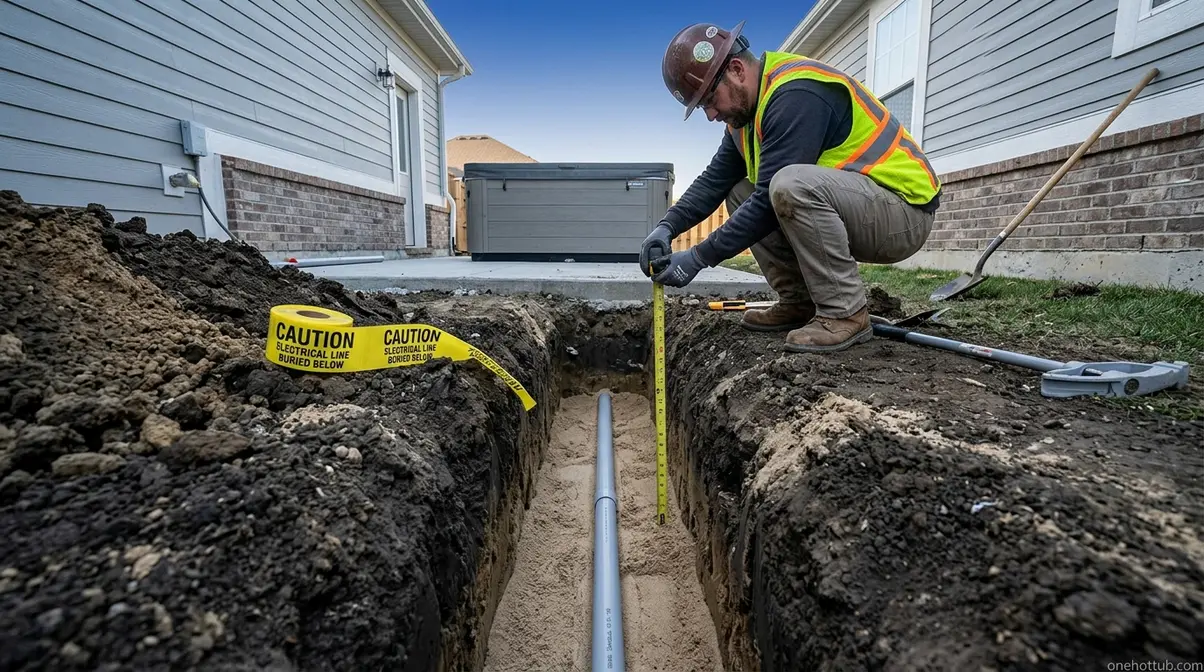

Step 3: Dig the trench and lay conduit

Grab that shovel! You’ll need to dig a trench from the spa panel to where your hot tub will live. How deep? Depends on your conduit:

• PVC conduit: Dig down at least 18 inches
• Rigid metal conduit: 6 inches will do the trick

Call those utility folks before playing treasure hunter in your yard – hitting a gas line isn’t on anyone’s hot tub installation checklist. When cutting conduit sections, use sweep fittings instead of sharp 90-degree angles – your wires will slide through much easier.

Step 4: Pull and connect the wires

Now for the wire fishing expedition! Pull the right wire through your conduit using fish tape. For most hot tubs:

• Go with #6 AWG copper wire with THHN/THWN insulation
• Steer clear of aluminum wire – it’s a big no-no for hot tubs
• You’ll need four wires total: two hot ones (black and red), one neutral (white), and one ground (green)

Leave about 6 inches of extra wire hanging out at each end – you’ll thank yourself when making connections.

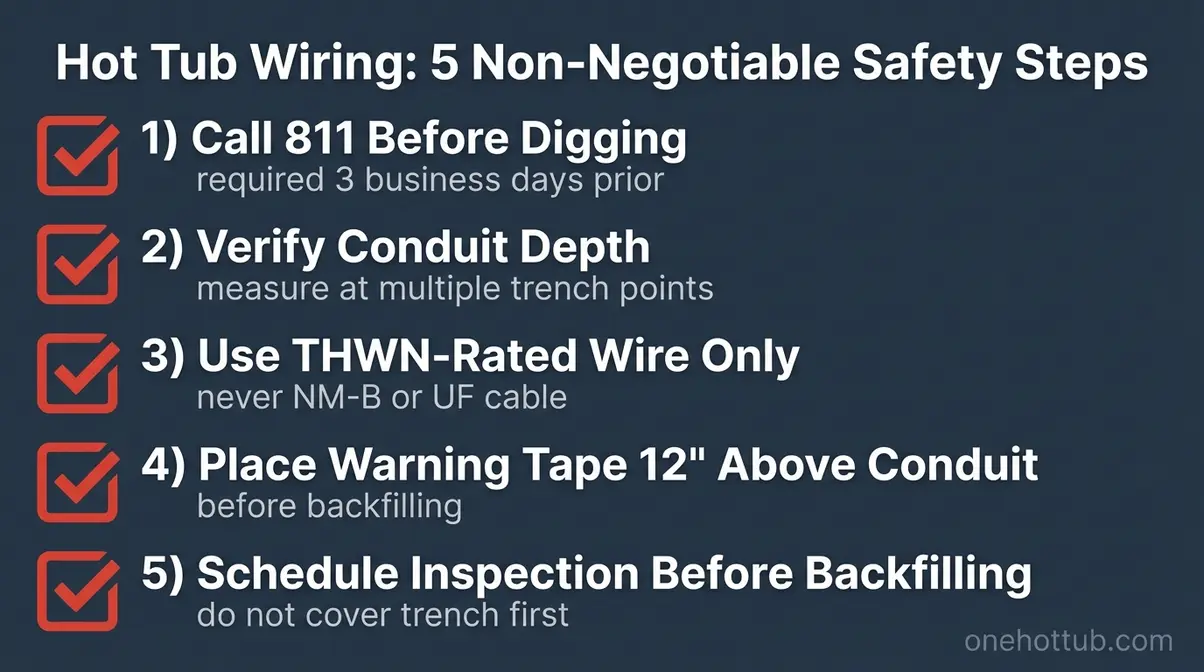

Step 5: Schedule inspection and backfill the trench

The finish line is in sight! Have a certified electrician or local building inspector check your handiwork before flipping any switches. Only after getting their thumbs-up should you:

• Fill in that trench (carefully, please)
• Test the GFCI by pushing its test button (it should click off immediately)
• Double-check all connections before your inaugural soak

Remember, that electrical inspection isn’t just red tape – it’s your insurance policy against shocking surprises down the road.

Choosing the Right Wire and Conduit

Your hot tub’s electrical system is only as good as the materials you choose! Think of wires and conduit as the unsung heroes of your hot tub setup – they work tirelessly behind the scenes to keep everything running safely. The right materials aren’t just about following rules – they’re your first line of defense against Mother Nature’s mood swings and Father Time’s persistent ticking.

Good materials mean your hot tub’s electrical system stays happy and healthy through scorching summers, freezing winters, and everything in between. Let’s dive into what makes certain wires and conduits the superstars of the hot tub world!

Types of wire for outdoor hot tubs (THWN, THHN, etc.)

Wondering which wire will keep your hot tub happily buzzing along? THHN/THWN wire steals the spotlight as the go-to choice for wiring 220V hot tubs. What makes it so special? This superstar comes wrapped in nylon insulation that stands strong against the moisture and temperature mood swings your hot tub deals with daily. Size matters too – most hot tub setups call for copper wire between 6 AWG and 12 AWG, depending on your circuit needs and how far the wire needs to travel.

Here’s a hot tip: never, ever use aluminum wire for hot tub connections. Sure, it might be easier on your wallet, but aluminum just can’t handle the demanding hot-tub lifestyle. It’s like bringing a paper umbrella to a thunderstorm – not going to end well!

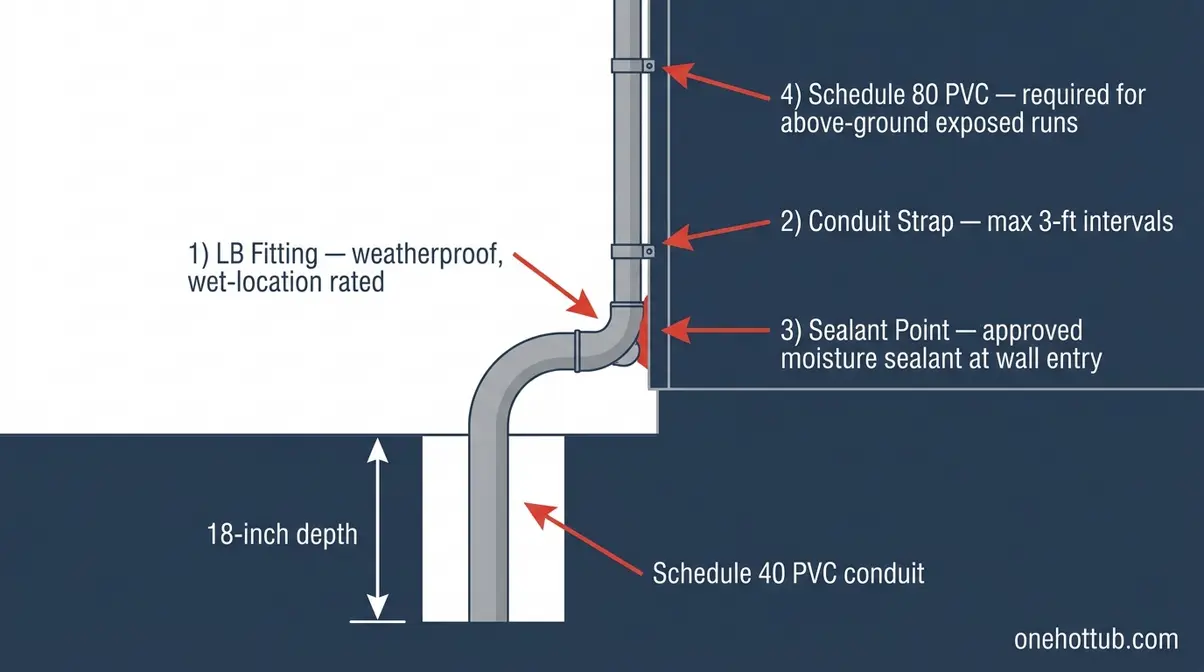

Conduit options: PVC vs. metal

Picking the right conduit for your hot tub wiring is like choosing the perfect outfit – it needs to fit the occasion and stand up to the elements! Both PVC and metal options have their sweet spots in hot tub installations:

Conduit Type	Best Used For	Burial Depth
PVC Schedule 40	Under-house runs	18 inches minimum
PVC Schedule 80	Above-ground exposure	18 inches minimum
Rigid Metal	Areas needing maximum protection	6 inches minimum
Flexible Metal	Runs shorter than six feet	Varies by code

Most hot tub pros reach for PVC conduit when going underground. It’s affordable, doesn’t rust, and handles moisture like a champ. But don’t dismiss metal conduit! It steps up as the heavyweight champion in areas where your wiring might face physical bumps and bruises. Think of it as the armor for your electrical wires when they’re in harm’s way!

Pros and Cons of different wire types

Let’s face it – not all wires are created equal! Before you make any decisions, check out this handy comparison of the wire types you might encounter for your hot tub project:

Wire Type	Pros	Cons
THHN/THWN	• Moisture resistant • Heat resistant up to 90°C • Required green insulated ground • Excellent for conduit installations	• Not rated for direct burial • Requires conduit protection • Higher initial cost
SWA Cable	• Direct burial rated • No separate conduit needed • Built-in steel armor protection	• Less flexible • More difficult to work with • May not meet all local codes
UF-B	• Common for outdoor use	• Not permitted for hot tub installations • Lacks insulated ground wire
NM-B Romex	• Easier to work with	• Indoor use only • Not permitted in outdoor conduit

Feeling tempted to save a few bucks by using smaller wire? Don’t do it! Sizing down wire for hot tub installations isn’t just cutting corners—it’s playing with fire (sometimes literally). Always stick with the correct wire size (typically #6 copper for most installations) to keep things from overheating and turning your relaxing soak into a four-alarm emergency.

Recommendations for Hot Tub Wiring Tools and Materials

Got your hot tub wiring plans all mapped out? Fantastic! Now let’s talk about the cool tools that’ll make this job safer and smoother. Having the right equipment isn’t just convenient—it’s the difference between a professional installation and a potential headache down the road. Let’s check out some spa-tacular tools you’ll want in your arsenal!

Voltage Tester – Klein Tools ET45

First up—a reliable voltage tester! Think of this as your personal bodyguard during installation. The Klein Tools ET45 is a standout choice that won’t let you down when working around your bubbly paradise.

Feature	Description
Voltage Range	Tests AC (24V-240V) and DC (32V-330V) at four levels
Durability	Withstands 9.8-foot drops with IP44 dust/water resistance
Power Source	No batteries required; powered by applied voltage
Safety Rating	CATIII 350V with double insulation protection
Test Lead Storage	Built-in holder for correct spacing with tamper-resistant outlets

What makes this tester extra awesome? No batteries required! That means no dead batteries right when you’re in the middle of your hot tub project. Plus, with those embossed measurement indicators, you’ll know exactly what you’re dealing with—even when working outdoors where glare can make reading difficult.

Conduit Bender – Gardner Bender 931B

Ever tried making perfectly angled conduit bends without the right tool? It’s like trying to fold origami with oven mitts! The Gardner Bender 931B makes those professional-looking bends a breeze:

Feature	Description
Compatibility	Bends 3/4" EMT and 1/2" rigid conduit
Accuracy	Built-in acrylic level gage for precise bends
Angle Options	Embossed sight lines for 10°, 22.5°, 30°, 45°, 60° and 90° bends
Added Function	Patented Vise-Mate holds conduit during cutting
Includes	Detailed bending manual with mathematical formulas

The built-in level is a game-changer—helping you achieve those perfect bends in half the time of standard benders. And that detailed manual? It’s like having a conduit-bending coach right there with you!

THWN-2 Copper Wire – Southwire 6 AWG

When it comes to wire, are you tempted to save a few bucks with cheaper options? Don’t go there! The Southwire 6 AWG is the real deal for hot tub success:

Feature	Description
Specifications	6 AWG stranded copper with 19 strands
Temperature Rating	Wet locations up to 90°C; 75°C when exposed to oil
Safety Certifications	UL-83, UL-1063, UL-758 compliant
Ampacity	65 Amps at 75°C / 75 Amps at 90°C
Application	Ideal for hot tubs, jacuzzis, and sub-panels

This wire’s nylon outer jacketing makes pulling it through conduit smoother than butter on a hot skillet. Plus, it stands up to oil and gasoline—perfect for those outdoor installations where exposure to lawn equipment might happen .

PVC Conduit Kit – Carlon 1-Inch Schedule 40

Your wires need proper protection underground—it’s like giving them their own little tunnel home! The Carlon 1-Inch Schedule 40 PVC Conduit Kit is just what the electrician ordered:

Feature	Description
Construction	Schedule 40 PVC for above and below-ground use
Weather Resistance	Sunlight resistant for outdoor applications
Adaptability	Compatible components including 90° belled elbows
Certification	UL listed for safety compliance
Benefits	Non-metallic design won’t rust or corrode

The 1-inch size gives your 6 AWG wires plenty of breathing room while forming a fortress against moisture and physical damage. And unlike metal options, this PVC won’t rust or corrode—even after years underground in changing weather conditions!

Final Thoughts – Hot Tub Wiring Installation: Expert Guide to Burial Requirements

Ready to turn your backyard into a bubbling oasis of relaxation? Remember that proper hot tub wiring isn’t just about getting things connected—it’s about keeping your family safe while you soak those cares away!

Professional installation isn’t a luxury—it’s a necessity that protects both your investment and the people you care about. The right wire size, proper GFCI protection, and correct burial depths aren’t just items on a checklist—they’re your shield against electrical hazards.

Thinking about cutting corners to save a few bucks? Think again! Those "savings" disappear mighty quickly when faced with repair costs, code violations, or worse—safety incidents. The cost of professional installation pales in comparison to what could happen if things go wrong.

Don’t forget about maintenance either! Just like you wouldn’t skip oil changes for your car, don’t neglect regular electrical checkups for your hot tub. A yearly visit from a licensed electrician can spot small issues before they become big problems.

Your hot tub should be your happy place—a spot where stress melts away and relaxation takes over. Following these installation guidelines and teaming up with qualified professionals means you’ll be enjoying those soothing jets for years to come, without electrical worries bubbling beneath the surface!

FAQs

Q1. Is it necessary to bury hot tub wiring?
Yes, hot tub wiring must be buried. The National Electrical Code (NEC) requires direct burial cables for hot tubs to be buried at least 18 inches deep, or 12 inches deep when using rigid nonmetallic conduit. This ensures safety and compliance with electrical codes.

Q2. What are the key electrical requirements for hot tub installation?
Hot tubs typically require a dedicated 50-amp, 240-volt circuit with GFCI protection. The installation must include a manual disconnect device within sight of the tub, at least 5 feet away. All wiring should be copper, and receptacles must be at least 6 feet from the tub’s inside wall.

Q3. Can I install hot tub wiring myself?
It’s strongly recommended to hire a licensed electrician for hot tub wiring installation. DIY electrical work can be dangerous and may violate local codes. Professional installation ensures safety, proper functionality, and compliance with all relevant regulations.

Q4. What type of wire is best for hot tub installations?
For most hot tub installations, #6 AWG copper wire with THHN/THWN insulation is recommended. This wire type offers excellent moisture and heat resistance, making it suitable for the demanding conditions of hot tub electrical systems. Never use aluminum wire for hot tub connections.

Q5. How often should I have my hot tub’s electrical system inspected?
It’s advisable to have your hot tub’s electrical system inspected annually by a licensed electrician. Regular inspections help identify potential issues before they become dangerous, ensuring the continued safe operation of your hot tub and compliance with safety standards.
