Hot Tub Disconnect Location: Expert Guide to Proper Installation

Hero Image for Hot Tub Disconnect Location: Expert Guide to Proper Installation

Guess what? That electrical disconnect box for your hot tub isn’t just some random component – it’s actually a super important safety feature that needs to be placed between 5 and 50 feet from your hot tub’s edge!

Pretty specific, right? But when it comes to hot tub disconnect requirements, these details really matter! Your bubbling oasis typically runs on 220-240 volts with a 40 amp circuit – that’s some serious electrical power that demands proper setup for your safety. The key rule is simple: your disconnect must be easily visible from your hot tub while staying a safe distance from all that splashing water.

We know that figuring out the electrical stuff for your hot tub can make your head spin. But whether you’re setting up a brand-new spa or giving your current setup a makeover, getting that disconnect location just right is super important. Don’t worry though! This guide covers everything you need for proper hot tub disconnect installation – from the basic must-knows to clever pro tips.

Ready to make sure your hot tub setup is both safe and follows all the rules? Let’s jump right in!

Understanding Hot Tub Disconnect Basics

A hot tub disconnect isn’t just a fancy on/off switch—it’s actually your spa’s safety superhero! This little powerhouse deserves your complete attention during installation. Let’s splash into what makes these devices so important!

What is a hot tub disconnect?

Ever wondered about that little electrical box near your hot tub? That’s your hot tub disconnect – a separate, secure electrical panel specially built for powering those awesome 220-volt hot tubs. Think of it as your spa’s personal power command center! Unlike regular electrical connections, this smart setup lets you quickly cut power when needed without any hassle.

Your disconnect works like an “outside disconnect” guardian – super convenient when you need to shut things down fast without running all the way to your home’s main electrical panel during an urgent situation. Plus, this special power outlet delivers extra electrical juice for faster water heating and lets you crank those jets on high while keeping the water toasty warm – something those simple plug-and-play models just can’t handle.

Why disconnects are essential for safety

Here’s something important – hot tub disconnects aren’t just a “nice-to-have” feature—they’re absolutely required by current electrical codes. And for good reason! Water and electricity make about as good a pair as peanut butter and pickles.

The biggest safety perk? Your disconnect can immediately cut power during those “uh-oh” moments or when you’re doing maintenance. Every proper hot tub disconnect comes with a special friend called a Ground Fault Circuit Interrupter (GFCI). This smart little device automatically spots and stops potentially dangerous ground faults before they can zap anyone.

So when do these pesky ground faults usually show up? Typically in three scenarios:

  1. When a circuit gets too power-hungry (overloaded)
  2. When wiring decides to take a break (gets damaged)
  3. When electrical parts get unwanted visitors like moisture, dust, or other contaminants

With all these potential shocking situations, your disconnect creates a crucial safety shield between you and electrical dangers. For those powerful 220-volt hot tubs especially, this extra layer of protection isn’t just nice—it could literally save your life by preventing electric shock when you’re enjoying your soak.

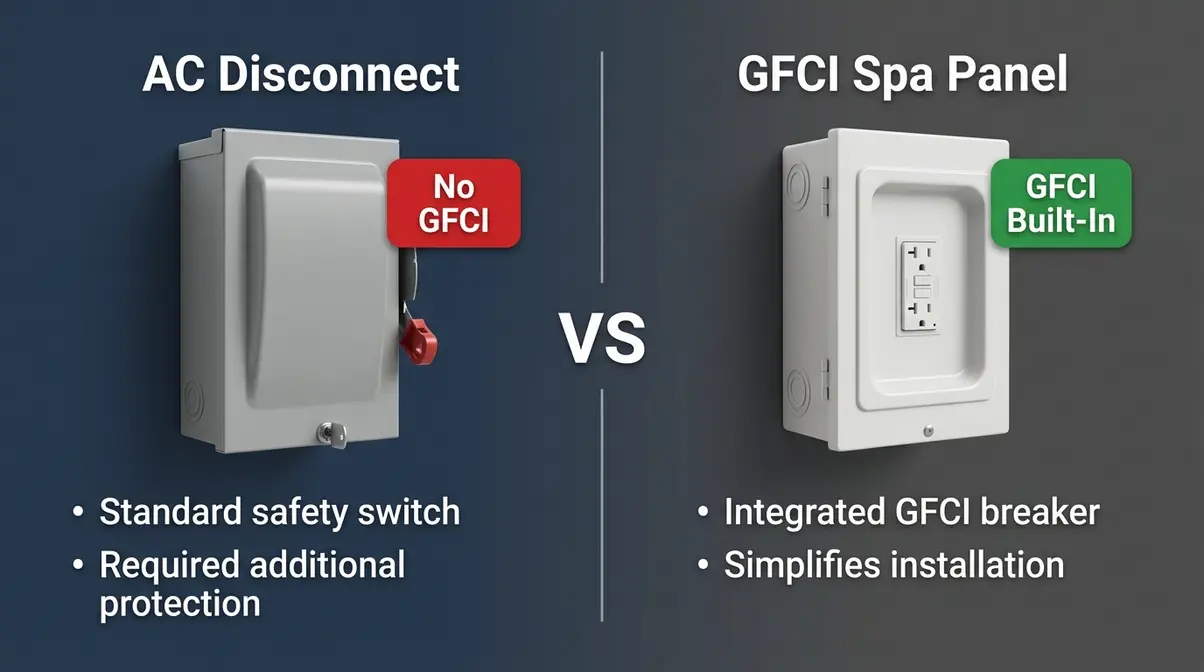

Types of hot tub disconnects available

Shopping for a hot tub disconnect? You’ve got options! Let’s look at the different disconnect flavors that can meet your setup needs:

  • Pre-installed GFCI breaker disconnects – The pros call these “hot tub disconnects,” and they come with GFCI protection already baked right in

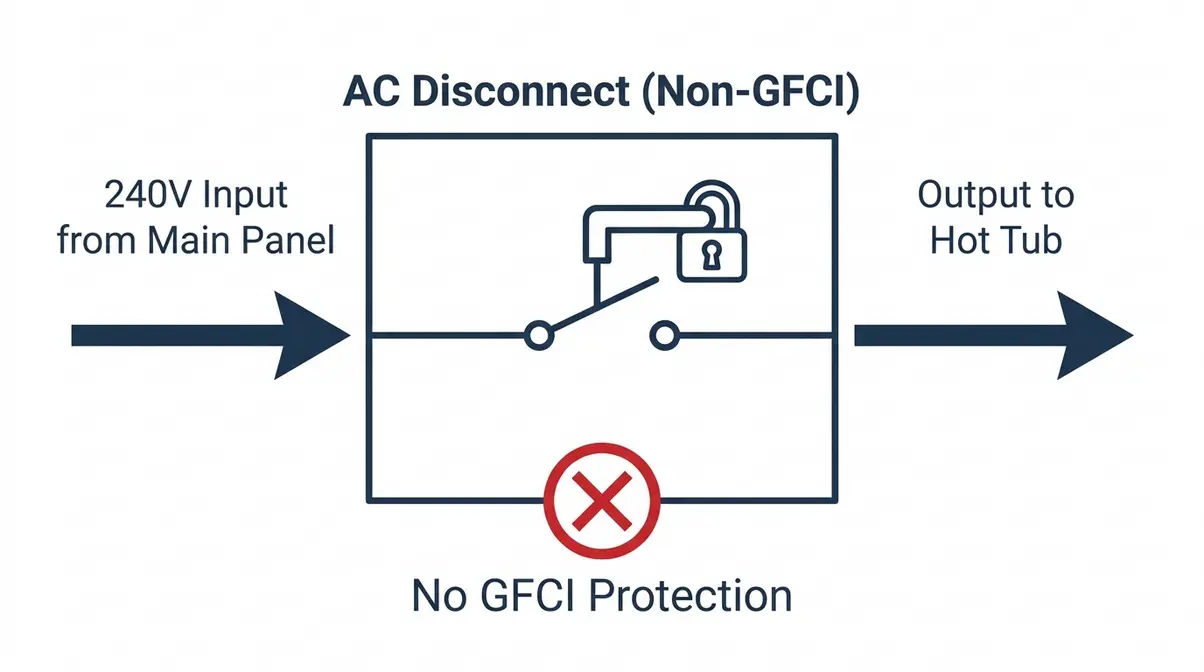

  • Regular disconnects – Think of these as mini 2-space subpanels that you can outfit with whatever breakers your setup needs
  • Lever-style disconnects – These tough guys usually outlast those pullout models (whose plastic handles have an unfortunate habit of melting when things get too hot)
  • Weatherproof models – Absolutely essential if your hot tub is living the outdoor life! These protect all those sensitive electrical bits from rain, snow, and whatever else Mother Nature throws their way

Most disconnects you’ll find come in either 50-amp or 60-amp flavors and can handle up to 240 volts. Which one’s right for you? That depends entirely on what your particular hot tub is hungry for, power-wise.

Remember this golden rule: no matter which type catches your eye, you’ve got to follow those placement rules to the letter—at least 5 feet from your hot tub’s edge but within 50 feet and where you can see it from your tub. And don’t forget that your disconnect needs proper labeling according to those code requirements.

While it’s great to understand all these basics, let’s be real—this job calls for a pro. Always have a licensed electrician who knows both local and national codes handle the installation. Your safety is worth it!

Hot Tub Disconnect Requirements by Code

Want to stay on the right side of the law with your hot tub install? Understanding code requirements isn’t just paperwork—it’s your safety blueprint! The National Electrical Code (NEC) lays down specific safety rules that you absolutely must follow to keep everyone safe from those sneaky electrical hazards that could be lurking.

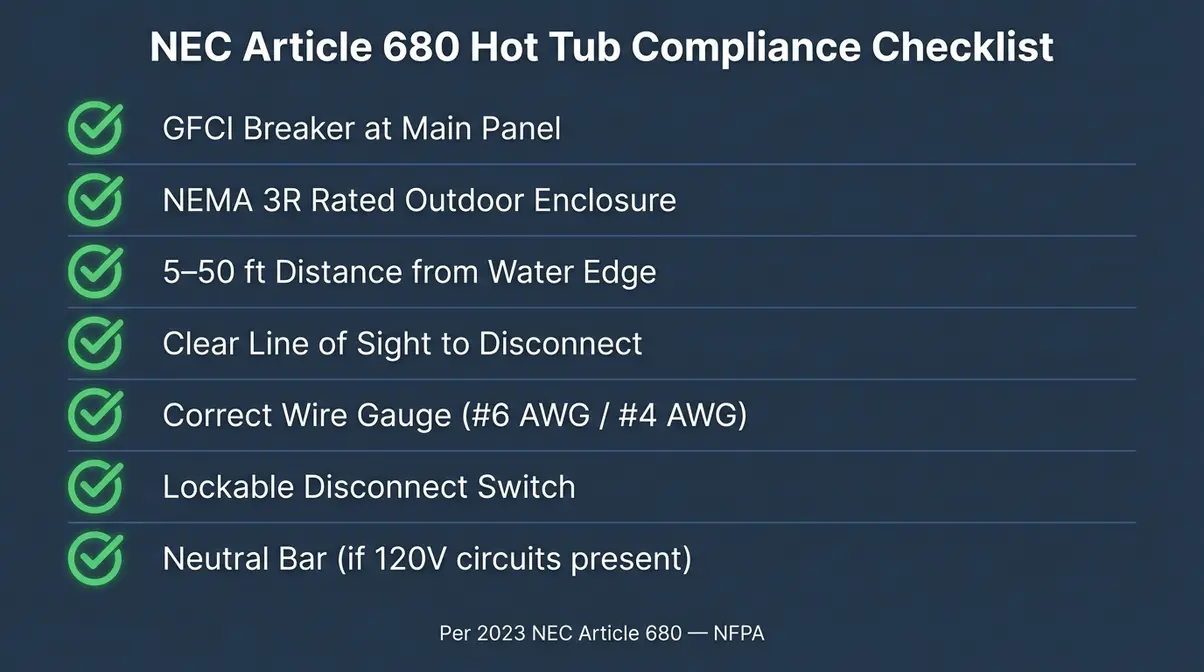

National Electrical Code (NEC) requirements

Curious what the electrical rule book says about your hot tub setup? The NEC lays down some non-negotiable rules for hot tub electrical installations. First off, your bubbling paradise must be hard-wired into a ground fault circuit interrupter (GFCI)-protected 220 to 240V, 50 or 60 amp dedicated circuit. You’ll also need to install a manual disconnect device—what the pros often call a “spa panel”—somewhere between your home’s main electrical panel and your spa.

Did you know all the electrical equipment for hot tubs has its own special section in the rulebook? It’s true! Everything falls under Article 680 of the National Electrical Code, which covers all things related to swimming pools, spas, hot tubs, and similar splashy features. This whole chunk of code has one main job—keeping people and electricity from having an unwanted meet-up.

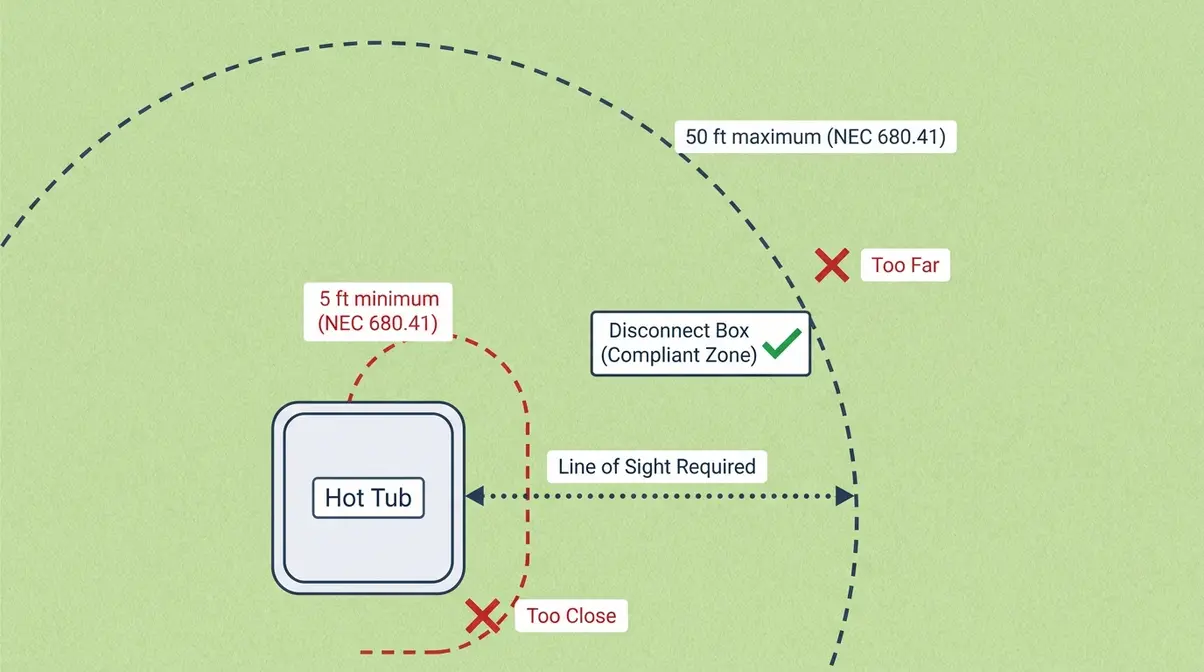

Distance requirements from water’s edge

How far should your disconnect be from your hot tub? This isn’t just a random question—it’s super important for your safety! The NEC has some pretty specific rules about this. They say your maintenance disconnecting means (fancy talk for your disconnect switch) must sit at least 5 feet horizontally from the inside walls of your hot tub. Measuring this is pretty straightforward—just follow the shortest path from the water’s edge to where you’d place the disconnect.

Here’s a fun twist though! If you’ve got a permanent barrier (like a wall) between your disconnect and the open water that creates a pathway of 5 feet or more, you can actually place the disconnect a bit closer. But don’t go putting it way out in the yard either—your disconnect shouldn’t be more than 50 feet away from your hot tub.

Do’s and Don’ts of Disconnect Placement:

Do’s

  • Place disconnect at least 5 feet from water’s edge
  • Ensure the disconnect is visible from the hot tub
  • Mount according to manufacturer’s instructions
  • Keep hot tubs at least 10 feet from overhead power lines

Don’ts

  • Install disconnect closer than 5 feet without a barrier
  • Place disconnect more than 50 feet away
  • Position where someone could touch while in water
  • Install in areas prone to moisture without proper protection

Remember—these distances aren’t suggestions, they’re safety requirements! Think of that 5-foot buffer zone as your personal protection space between relaxing soaks and electrical components.

GFCI protection specifications

Is your hot tub properly protected from electrical mishaps? GFCI protection isn’t just a fancy add-on—it’s an absolute must-have for hot tub safety. The NEC says outdoor spas need GFCI protected circuits instead of just relying on regular fuses or circuit breakers. This clever system ensures there’s no voltage lurking around when it shouldn’t be, which keeps you from getting an unwelcome shock if you happen to touch water during operation.

Think of a GFCI breaker as your personal lifeguard—it can actually prevent dangerous electric current from sneaking into your hot tub water. Without it, you could face the serious risk of electrical shock drowning. That’s why you should make testing your GFCI a regular habit, following whatever schedule your manufacturer recommends in their installation guide.

Remember, when it comes to mixing electricity and water, that little GFCI device is working overtime to keep your relaxation time safe and worry-free!

Visibility and accessibility guidelines

Can your disconnect play a game of hide and seek? Absolutely not! Your maintenance disconnecting means must be easily accessible and located where you can see it from your hot tub equipment. The NEC doesn’t leave this to chance—they specifically define “within sight” as visible and no more than 50 feet from one to the other.

Got a hot tub in an apartment building or condo? Special rules apply! In non-single-family dwellings, you’ll need a clearly labeled emergency shutoff for the spa water circulation and jet system. This emergency lifeline must be easy for anyone to reach and positioned at least 5 feet away from the spa, while still staying nearby and visible from your hot tub.

Don’t forget about Mother Nature’s effects on your outdoor electrical components! Any outdoor receptacles that might face rain, snow, or morning dew need proper weatherproof coverings. This isn’t just a suggestion—proper outdoor rating is super important since moisture and GFCI devices mix about as well as oil and water.

Stick closely to these code requirements and you’ll create a hot tub setup that’s not just bubbling with fun but also rock-solid on safety while keeping those inspection officials happy!

Planning Your Hot Tub Electrical Installation

Ready to wire up that dream hot tub? Proper planning isn’t just about checking boxes—it’s your ticket to safe, efficient, and worry-free soaking for years to come! Before you call an electrician or start shopping for parts, let’s figure out exactly what your particular hot tub is hungry for, power-wise.

Assessing your hot tub’s electrical needs

First things first—grab your hot tub’s manual and find those exact specs. Most standard hot tubs are power-hungry beasts requiring a dedicated 220-240 volt circuit with a 50-amp breaker connection. Why so much juice? Well, each pump is slurping electricity, not to mention all those fancy LED lights and heating systems keeping your water toasty!

But wait—your home’s electrical system needs a checkup too:

  • Can your main breaker handle this new spa without throwing a fit?
  • Is there room in your service panel for another dedicated circuit?
  • How far will wires need to travel from your electrical panel to your planned hot tub spot?

Living in an older home or have a packed electrical panel? You might need a service panel upgrade before your hot tub dreams can bubble to life.

Choosing between 110V and 220V systems

Spa shopping and seeing both 110V and 220V options? Let’s break down the differences:

110V Systems 220V Systems
Plug directly into standard outlet Require professional installation
Slower heating (1KW heater) Faster heating (4KW heater)
Cannot run heater and jets simultaneously Can run all features simultaneously
Lower installation costs More energy efficient long-term
Typically less powerful jets More powerful hydrotherapy experience

Those 110V “plug-and-play” models might seem super convenient with lower upfront costs, but 220V systems are the real performance champions. Fun fact: 220V systems heat water twice as fast, which means pumps run half as long—significantly reducing wear and tear on your spa’s inner workings.

Living somewhere chilly? A 220V system isn’t just nice—it’s practically essential since it can keep your water toasty even while those jets are pumping.

Determining the ideal disconnect location

Finding the perfect spot for your disconnect means juggling code rules with practical smarts:

  1. Keep it at least 5 feet but no more than 50 feet from your water’s edge
  2. Make sure you can see it clearly from your hot tub
  3. Think about easy access when maintenance time rolls around
  4. Consider weather protection—rain and electrical boxes aren’t friendly!

Beyond the code stuff, try to minimize wire length—the closer to your house, the less wiring needed, which could save you some installation dollars. But remember: never cut safety corners just to save a few bucks!

Required materials and tools checklist

Setting up a standard 240V hot tub? Here’s your shopping list:

  • 50-amp GFCI breaker that plays nice with your electrical panel
  • Maintenance disconnect box (weatherproof for outdoor installation)
  • No. 6 gage copper wire (you’ll need neutral, two hot wires, and ground)
  • Conduit pipe to safely house all that wiring
  • Weatherproof coverings for any outdoor receptacles
  • Trenching tools if you’re running wires underground

Speaking of underground wiring—it needs proper conduit protection at a depth your local codes specify, usually around 18 inches. PVC pipes are great for keeping wires safe from water damage and physical oopsies.

Given all these moving parts and safety concerns, booking a licensed electrician early in your planning process helps avoid headaches and ensures your setup will pass inspection with flying colors.

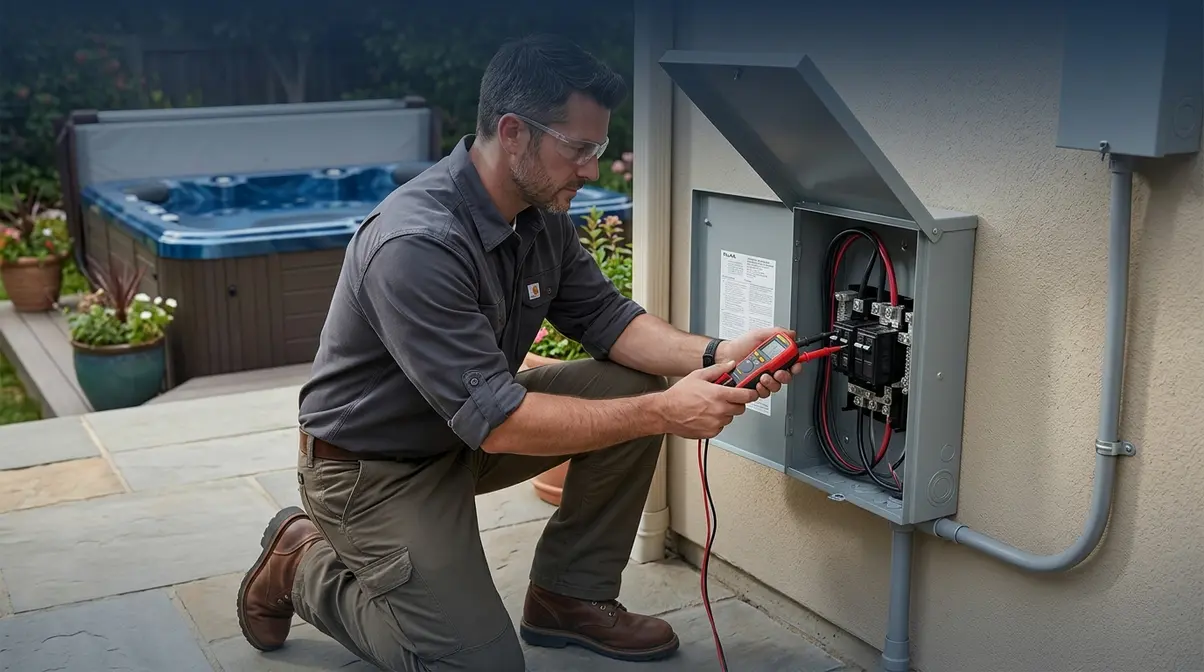

Step-by-Step Disconnect Installation Guide

Ready to get your hands dirty with your hot tub’s electrical setup? Let’s wade into the actual installation process! While we’re sharing all the essential details here, remember that any electrical work involving splashy features should really be handled by a licensed electrician.

Running the electrical circuit from panel to disconnect

Safety first! Turn off all power at your main electrical panel before touching a thing. Next, grab your shovel and dig a trench from your home to where your disconnect will live. Make it at least 18 inches deep (but double-check your local codes—they might have their own ideas).

Now it’s time to protect those wires! Install conduit through your freshly dug trench. PVC conduit is your best buddy here—it’s budget-friendly and doesn’t mind getting wet. Connect your indoor and outdoor conduits with an LB fitting popping through your exterior wall.

What about the wires themselves? For most 240V hot tubs with 50-amp service, you’ll need No. 6 gage copper wire—that’s one neutral wire, two hot wires, and one ground wire playing together nicely.

Mounting and securing the disconnect box

Got your disconnect box? Great! Mount it following the manufacturer’s instructions. Your box needs to be:

  • At least 5 feet away from your bubbly paradise
  • Where you can see it from your spa
  • Locked down tight so it won’t wiggle or jiggle
  • Properly weatherproofed if it’s living outdoors

Don’t forget to use U-clamps to secure that conduit to your walls—nobody wants droopy pipes!

Proper wiring techniques for hot tub circuits

Fishing for wires? Use fish tape to pull those wires through the conduit. Leave yourself plenty of slack—about 3 feet at both ends—so you have wiggle room for connections.

When wiring your disconnect box, follow this color-coded roadmap:

  1. Connect black and red (hot) wires to the GFCI breaker
  2. Connect white (neutral) wire to the neutral bar
  3. Attach green/bare copper (ground) wire to the ground bar

Connecting neutrals and grounds correctly

Here’s where many DIYers take a wrong turn! In a 4-wire hot tub system:

  • The white neutral wire from your spa needs to connect directly to the neutral terminal of the GFCI breaker
  • Never ever connect the neutral to the ground bar in your disconnect box—this mistake happens all the time and causes major headaches
  • Keep neutral and ground wires from becoming friends except at the main panel
  • Tighten all screw connections until they’re snug as a bug—loose connections can heat up faster than your hot tub!

Here’s a zapping fact: if you mix up your neutral and ground wiring, your GFCI will immediately trip when you power up, leaving you with a cold tub and a puzzling problem.

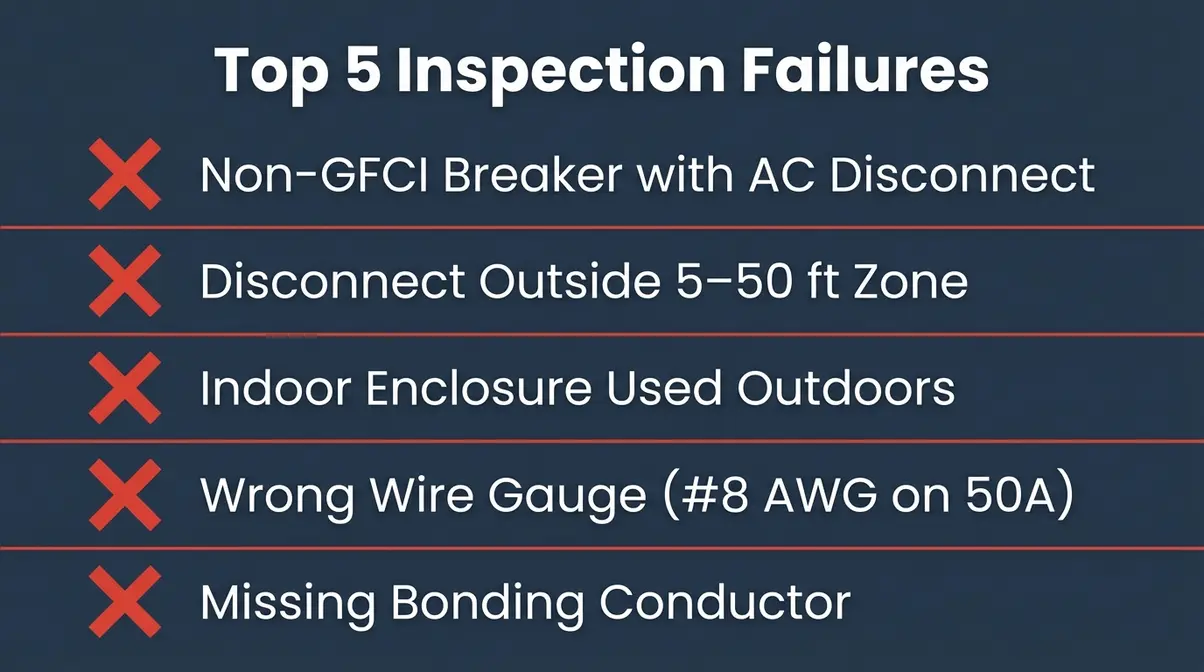

Common Installation Mistakes to Avoid

Whoops! Even the most careful planners can stumble into hot tub disconnect installation blunders. Let’s spot these sneaky mistakes before they zap your perfect spa setup!

Incorrect disconnect placement

The location of your disconnect isn’t something you can fudge for convenience—it’s a safety must-have. Your disconnect switch needs to sit at least 5 feet horizontally from your hot tub’s inside walls. This magic distance keeps folks from accidentally reaching for the switch while they’re still splashing around, which could lead to a shocking situation (literally).

Common placement mistakes to dodge:

Do’s

  • Position disconnect at least 5 feet from water’s edge
  • Ensure disconnect is visible from the hot tub
  • Mount at proper height for easy access
  • Install in a weatherproof location

Don’ts

  • Install disconnect too close to hot tub
  • Hide disconnect behind decorative elements
  • Position where children can reach it
  • Place where splashing water can reach it

Improper GFCI protection

Thinking about skipping GFCI installation to save a few bucks? Bad idea! This shortcut creates a major safety risk and flat-out breaks electrical codes. GFCI protection isn’t optional—it’s your safety net against electric shock in wet environments.

Watch out for these shockingly common blunders:

  • Flipping line and load connections backward—a rookie mistake that makes your device useless
  • Messing up neutral wire connections, causing your system to trip when nothing’s wrong
  • Trying to get by with regular breakers instead of proper GFCI protection

Inadequate weatherproofing

Your outdoor electrical gadgets need protection from Mother Nature’s moods! Every electrical connection—spa panel, disconnect switch, the works—must have proper weatherproofing.

Weatherproofing fails that spell trouble:

  • Missing or broken weatherproof covers on outdoor receptacles
  • Conduit connections with gaps where rainwater can sneak in
  • Using indoor-rated materials for your outdoor setup (they won’t last!)

Undersized wiring issues

Skimping on wire size? That’s playing with fire—literally! Undersized wiring can overheat and potentially spark a blaze. For most spas, you’ll need number 6 gage wire, and ideally, your wiring run should be less than 50 feet from your house breaker box.

Wimpy wires often lead to:

  • Breakers that keep tripping like they’re at a dance party
  • Frazzled internal controls and components
  • Warranties that vanish into thin air due to improper installation
  • Power loss over long distances, leaving your hot tub struggling for juice

Remember, cutting corners on your hot tub electrical setup isn’t just against the rules—it could turn your relaxing spa experience into a dangerous situation faster than you can say “bubble bath”!

Final Thoughts – Hot Tub Disconnect Location

Ready to enjoy your hot tub without electrical worries? Safe hot tub installation depends on getting that disconnect location just right, along with proper electrical setup. The magic 5-50 feet distance between your hot tub and disconnect switch isn’t just a suggestion—it’s a crucial safety buffer that keeps you and your family protected while you soak.

Why hire a pro? A licensed electrician makes sure your setup ticks all the code requirement boxes—from proper GFCI protection to weatherproofing that stands up to the elements. Plus, they’ll help you pick the right disconnect type and wire size to avoid those pesky problems like overheating or system hiccups.

Let’s be honest—cutting corners with electrical work is never worth the risk! Take the time to double-check those measurements, use the right materials (no substitutions!), and verify all connections before you flip that power switch for the first time.

The bottom line? Proper hot tub disconnect installation lays the groundwork for years of splash-filled, worry-free enjoyment. Whether you’re setting up a brand-new spa or giving your current setup a safety makeover, following these guidelines protects both your investment and your peace of mind. After all, your hot tub should be your happy place—a source of bubbling relaxation, not electrical concern!

FAQs

Q1. What are the key requirements for hot tub disconnect location?
The disconnect must be at least 5 feet but no more than 50 feet from the hot tub’s edge, visible from the tub, and readily accessible. It should be mounted securely and weatherproofed for outdoor installations.

Q2. Can a hot tub disconnect be installed out of sight?
No, the disconnect must be within sight of the hot tub. This is a safety requirement to ensure quick power cutoff in case of emergencies. If it’s not directly visible, it doesn’t meet code requirements.

Q3. What type of electrical protection is required for a hot tub installation?
Hot tubs require GFCI (Ground Fault Circuit Interrupter) protection. This should be installed on a dedicated 220-240V, 50 or 60 amp circuit. GFCI protection is crucial for preventing electric shock in wet environments.

Q4. What are common mistakes to avoid when installing a hot tub disconnect?
Common mistakes include placing the disconnect too close to the water, improper GFCI wiring, inadequate weatherproofing, and using undersized wiring. It’s crucial to follow manufacturer instructions and local electrical codes.

Q5. Should I install the hot tub disconnect myself or hire a professional?
It’s strongly recommended to hire a licensed electrician for hot tub disconnect installation. They ensure compliance with electrical codes, proper GFCI protection, and correct wiring, which are critical for safety and long-term reliability.
